[마블 VR] 방패 던지기 다듬기

trigger버튼에서 손 떼면 바로 날라가는게 아니라 스윙하면 날라가기 수정

void FixedUpdate()
    {
        var velocity = OVRInput.GetLocalControllerVelocity(OVRInput.Controller.LTouch); //.normalized;
        this.av = Mathf.Abs((float)Math.Truncate(((velocity.x + velocity.y + velocity.z) / 3.0f) * 100f) / 100f);

        if (OVRInput.Get(OVRInput.Button.PrimaryHandTrigger, OVRInput.Controller.LTouch))
        {
            this.isShoot = false;
        }
        if (av > 0.3f)
        {
            this.isSwing = true;
        }
        if (this.isShoot == false&&this.isSwing==true)
        {
            //손을 떼었을 때 날라감
            if (!OVRInput.Get(OVRInput.Button.PrimaryHandTrigger, OVRInput.Controller.LTouch) && this.av < 0.06f)
            {
                this.isShoot = true;
                this.isSwing = false;
                this.pos.SetParent(null);
                this.dir = this.centerEyeAnchor.forward;
                Debug.LogFormat("<color=lime>손을 떼었을 때 날라감</color>");
                //내적하기
                if (centerEyeAnchor.forward.y > 0.2f)
                {
                    this.dir.y -= 0.15f;
                }
                this.dot = Vector3.Dot(this.pos.forward, centerEyeAnchor.forward);
                this.moveCoroutine = this.StartCoroutine(this.CoMove());

            }

        }
    }



컨트롤러의 속도를 찍어보고 컨트롤러의 속도가 0.3이상이면 isSwing=true로 해서 true일경우에만 날라가도록 했다.



결과물



가만히 있으면서 버튼만 손에서 뗀다고 날라가지 않고 스윙해야 날라감



---

문제점. 계속 흔들다보면 날라감

로그를 찍어보니 hand trigger버튼을 한번만 누르면 계속 false이고, 속도도 0.6보다 한번만 커지면 계속 true가 되기 때문

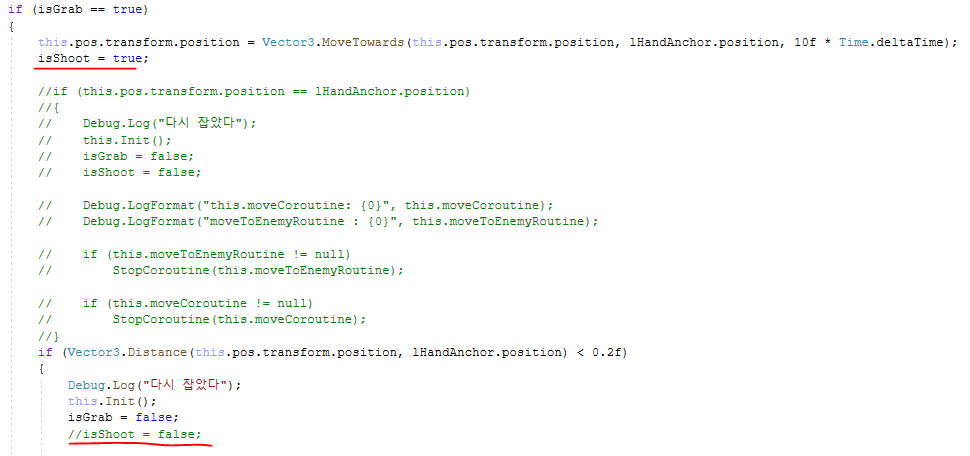

 if (OVRInput.Get(OVRInput.Button.PrimaryHandTrigger, OVRInput.Controller.LTouch)&&av>0.5f)
        {
            this.isShoot = false;
        }

원래는 손에 붙으면 isShoot=false가 되도록 했는데, 그 부분을 주석처리 하였다.



---

가장 큰 문제는 .. 적 방향으로 날라가는건데 ..  조건(내가 바라보는 방향과 손의 방향의 내적값)값을 올리면 너무 어렵게 되고, 낮추면 너무 그쪽으로 던진게 아닌데 그쪽으로 날라간다..



내적 값이 얼마정도 나오는지 확인해봐야 할거같다.





웬만하면 눈의 앞방향과 , 내 몸부터 타겟까지의 방향의 내적 값이 0.9이상 나온다.



위 사진처럼 완전히 극단적으로 고개를 아래를 보지 않는 이상.. 그다지 차이가 나지 않는다







---

[전체 코드]

using Oculus.Interaction;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using DG.Tweening;
using System.Linq;
using System;
using UnityEditor;
using Unity.VisualScripting;
using UnityEditor.Experimental.GraphView;

public class Shield : MonoBehaviour
{
    [SerializeField] private EnemyAttackMain enemyAttackMain;
    [SerializeField] private Transform lHandAnchor;
    public Transform pos;
    [SerializeField] private Transform centerEyeAnchor;
    private float moveSpeed = 10;
    private float dot;
    private Vector3 dir;
    private float degrees = 0;
    private Coroutine moveCoroutine;
    private Vector3 targetDir;

    float av = 0f;//컨트롤러 속도
    private bool isShoot = true;
    private bool isGrab;
    private bool isSwing;

    Dictionary<GameObject, float> dic = new Dictionary<GameObject, float>();
    private float detectRadius = 10f;
    private Vector3 startPos;
    private IEnumerator shakeRoutine;

    private void Start()
    {
        //방패 진동
        this.shakeRoutine = this.CoShake(0.005f);
        this.startPos = this.transform.localPosition;
    }

    void FixedUpdate()
    {
        var velocity = OVRInput.GetLocalControllerVelocity(OVRInput.Controller.LTouch); //.normalized;
        this.av = Mathf.Abs((float)Math.Truncate(((velocity.x + velocity.y + velocity.z) / 3.0f) * 100f) / 100f);

        if (OVRInput.Get(OVRInput.Button.PrimaryHandTrigger, OVRInput.Controller.LTouch))
        {
            this.isShoot = false;
        }
        if (av > 0.4f)
        {
            this.isSwing = true;
        }
        if (this.isShoot == false&&this.isSwing==true)
        {
            //손을 떼었을 때 날라감
            if (!OVRInput.Get(OVRInput.Button.PrimaryHandTrigger, OVRInput.Controller.LTouch) && this.av < 0.06f)
            {
                this.isShoot = true;
                this.isSwing = false;
                this.pos.SetParent(null);
                this.dir = this.centerEyeAnchor.forward;
                Debug.LogFormat("<color=lime>손을 떼었을 때 날라감</color>");
                //내적하기
                if (centerEyeAnchor.forward.y > 0.2f)
                {
                    this.dir.y -= 0.15f;
                }
                this.dot = Vector3.Dot(this.pos.forward, centerEyeAnchor.forward);
                this.moveCoroutine = this.StartCoroutine(this.CoMove());

            }

        }
        //다시 잡았을 때
        if (isGrab == true)
        {
            this.pos.transform.position = Vector3.MoveTowards(this.pos.transform.position, lHandAnchor.position, 10f * Time.deltaTime);
            isShoot = true;

            //if (this.pos.transform.position == lHandAnchor.position)
            //{
            //    Debug.Log("다시 잡았다");
            //    this.Init();
            //    isGrab = false;
            //    isShoot = false;

            //    Debug.LogFormat("this.moveCoroutine: {0}", this.moveCoroutine);
            //    Debug.LogFormat("moveToEnemyRoutine : {0}", this.moveToEnemyRoutine);

            //    if (this.moveToEnemyRoutine != null)
            //        StopCoroutine(this.moveToEnemyRoutine);

            //    if (this.moveCoroutine != null)
            //        StopCoroutine(this.moveCoroutine);
            //}
            if (Vector3.Distance(this.pos.transform.position, lHandAnchor.position) < 0.2f)
            {
                Debug.Log("다시 잡았다");
                this.Init();
                isGrab = false;
                isShoot = false;

                Debug.LogFormat("this.moveCoroutine: {0}", this.moveCoroutine);
                Debug.LogFormat("moveToEnemyRoutine : {0}", this.moveToEnemyRoutine);

                if (this.moveToEnemyRoutine != null)
                    StopCoroutine(this.moveToEnemyRoutine);

                if (this.moveCoroutine != null)
                    StopCoroutine(this.moveCoroutine);
            }
        }
    }


    IEnumerator CoMove()
    {
        this.Dorotate();
        var target = enemyAttackMain.FindEnemyDir();
        if (target != null)
        {

            this.targetDir = (target.transform.position - this.pos.transform.position).normalized;
        }
        else if (target == null)
        {
            targetDir = (this.lHandAnchor.position - this.pos.position).normalized;
            //Debug.Log("<color=yellow>다 공격했다.</color>");
        }
        var targetDot = Vector3.Dot(targetDir, centerEyeAnchor.forward);
        while (true)
        {
            //손과 눈의 위치가 비슷할때(30도 이하)
            if (this.dot > 0.8f)
            {
                if (targetDot > 0.9f)
                {
                    this.pos.Translate(targetDir * this.moveSpeed * Time.fixedDeltaTime, Space.World);
                }
                else
                {
                    this.pos.Translate(dir * this.moveSpeed * Time.fixedDeltaTime, Space.World);
                }

            }
            //손과 눈의 위치가 다를 때
            else
            {
                if (targetDot > 0.9f)
                {
                    targetDir = this.pos.forward;
                    this.pos.Translate(targetDir * this.moveSpeed * Time.fixedDeltaTime, Space.World);
                    Debug.Log("손과 눈의 위치가 다를 때 타겟 방향으로 날라가기");
                }
                else
                {
                    targetDir = this.pos.forward;
                    this.pos.Translate(targetDir * this.moveSpeed * Time.fixedDeltaTime, Space.World);
                }
            }

            if (OVRInput.Get(OVRInput.Button.PrimaryHandTrigger, OVRInput.Controller.LTouch) && this.pos.position != lHandAnchor.position)
            {
                isGrab = true;
                StopCoroutine(this.moveCoroutine);
            }

            yield return null;
        }

    }

    public void Init()
    {
        Debug.Log("위치 초기화 완료");
        this.pos.SetParent(lHandAnchor);
        this.pos.localPosition = new Vector3(0, 0, 0);
        this.pos.localRotation = Quaternion.Euler(0, 0, 0);
        this.transform.localRotation=Quaternion.Euler(0, -83, 0);
        DOTween.Kill("rotateTween");
        //this.isShoot = false;
        //this.isGrab = false;
    }

    public void Dorotate()
    {
        this.transform.DORotate(new Vector3(-90, -83, 0), 1f).SetId("rotateTween");
    }

    private void OnCollisionEnter(Collision collision)
    {
        if(collision.gameObject.CompareTag("Enemy"))
        {
            //EditorApplication.isPaused = true;
            Debug.Log("<color=yellow>=> 충돌됨</color>");

            if (this.moveCoroutine != null) this.StopCoroutine(this.moveCoroutine);
            if (this.moveToEnemyRoutine != null) this.StopCoroutine(this.moveToEnemyRoutine);

            var target = this.FindNextTarget();
            if (target != null)
            {
                Debug.Log("<color=yellow>=> 타겟이 있음</color>");
                Debug.DrawLine(this.transform.position, target.transform.position, Color.red, 10f);

                this.RotateShield(target);
                this.moveToEnemyRoutine = this.StartCoroutine(this.CoMoveToEnemy(target.transform));
            }
            else  // 모든 적을 맞추고 타겟이 없음
            {
                Debug.Log("<color=yellow>=> 타겟이 없음</color>");
                //되돌아옴
                this.moveCoroutine = this.StartCoroutine(this.CoMove());
                //this.RotateShield(null);
            }
        }
        else //부딪힌게 enemy가 아님
        {
            dir = (this.lHandAnchor.position - this.pos.position).normalized;
        }
    }

    private void RotateShield(GameObject target)
    {
        if (target != null)
        {
            DOTween.Kill("rotateTween");
            //적 쳐다보기
            var dir = (target.transform.position - this.transform.position).normalized;
            this.transform.up = dir;

            if (this.transform.position.x < target.transform.position.x)
            {
                degrees = 270;
                Debug.LogFormat("<color=yellow>오른쪽에 있음 : {0}</color>", degrees);

            }
            else if (this.transform.position.x > target.transform.position.x)
            {
                degrees = 90;
                Debug.LogFormat("<color=yellow>왼쪽에 있음 : {0}</color>", degrees);
            }
            else
            {
                Debug.LogFormat("<color=yellow>같은 위치에 있음 : {0}</color>", degrees);
            }
            this.transform.rotation = this.transform.rotation * Quaternion.Euler(0, degrees, 0);
        }
        else if (target == null)
        {
            this.Dorotate();
        }

    }
    private GameObject FindNextTarget()
    {
        Collider[] enemyCols = Physics.OverlapSphere(this.pos.transform.position, this.detectRadius, 1 << 6);
        this.dic.Clear();
        for (int i = 0; i < enemyCols.Length; i++)
        {
            var col = enemyCols[i];
            this.dic.Add(col.gameObject, Vector3.Distance(col.transform.position, this.pos.transform.position));
        }

        if (this.dic.Count > 0)
        {
           // Debug.Log(dic.Count);
            var nearestDistance = this.dic.Values.Min();
            var target = this.dic.FirstOrDefault(x => x.Value == nearestDistance).Key;
            return target;
        }
        else
        {
            dir = (this.lHandAnchor.position - this.pos.position).normalized;
            return null;
        }

    }


    private Coroutine moveToEnemyRoutine;

    //두번째 부터 사용
    private IEnumerator CoMoveToEnemy(Transform target)
    {
        Debug.Log("<color=yellow>=> CoMoveToEnemy</color>");

        while (true) {

            var dir = (target.transform.position - this.pos.position).normalized;

            DrawArrow.ForDebug(this.pos.transform.position, dir, 10f, Color.red, ArrowType.Solid);

            this.pos.transform.Translate(dir * this.moveSpeed * Time.deltaTime, Space.World);

            var dis = Vector3.Distance(this.pos.transform.position, target.transform.position);
            if(dis <= 0.1f)
            {
                break;
            }
            yield return null;
        }
        Debug.Log("<color=yellow>=> 이동완료</color>");

    }
    //private IEnumerator CoDetectEnemy()
    //{
    //    while (true)
    //    {
    //        Collider[] enemyCols = Physics.OverlapSphere(this.transform.position, this.detectRadius, 1 << 6);
    //        this.dic.Clear();
    //        for (int i = 0; i < enemyCols.Length; i++)
    //        {
    //            var col = enemyCols[i];
    //            this.dic.Add(col.gameObject, Vector3.Distance(col.transform.position, this.transform.position));
    //        }

    //        if (this.dic.Count > 0)
    //        {

    //            Debug.Log(dic.Count);
    //            var nearestDistance = this.dic.Values.Min();
    //            var target = this.dic.FirstOrDefault(x => x.Value == nearestDistance).Key;
    //            var dirTarget = (target.transform.position - this.pos.position).normalized;
    //            Ray ray = new Ray(this.pos.transform.position, dirTarget);
    //            Debug.DrawRay(ray.origin, ray.direction * 1000f, Color.red);

    //            this.pos.transform.LookAt(target.transform);
    //            Debug.Log(ray.direction);
    //            //this.pos.Translate(ray.direction * this.moveSpeed * Time.fixedDeltaTime, Space.World);
    //            this.pos.transform.position = Vector3.MoveTowards(this.pos.transform.position, target.transform.position, 10f * Time.fixedDeltaTime);
    //            this.pos.transform.rotation = Quaternion.LookRotation(target.transform.position - this.pos.transform.position,Vector3.right);
    //        }
    //        else
    //        {
    //            dir = (this.lHandAnchor.position - this.pos.position).normalized;
    //            break;
    //        }
    //        yield return null;
    //    }
    //}


    //------------------------- 방패 진동 -----------------------------------
    private void OnParticleCollision(GameObject other)
    {

        this.StartCoroutine(this.shakeRoutine);
        if (this.shakeRoutine != null) StopCoroutine(this.shakeRoutine);
    }

    public void Shake()
    {
        this.StartCoroutine(this.shakeRoutine);
    }
    public void StopShake()
    {
        this.StopCoroutine(this.shakeRoutine);
    }

    //방패 진동하는 코루틴 함수
    private IEnumerator CoShake(float magnitude)
    {
        while (true)
        {
            transform.localPosition = (Vector3)UnityEngine.Random.insideUnitSphere * magnitude + startPos;
            yield return null;
        }
    }
}



using System;
using System.Collections;
using System.Collections.Generic;
using Unity.VisualScripting;
using UnityEngine;


public class Laser : MonoBehaviour
{
    private LineRenderer lr;
    [SerializeField] private Transform attackPos;

    public System.Action onGetHit;
    public System.Action onStopGetHit;
    private void Start()
    {
        this.lr = GetComponent<LineRenderer>();
    }

    void Update()
    {
        lr.SetPosition(0, this.attackPos.position);
        RaycastHit hit;

        Debug.DrawRay(this.attackPos.position, this.attackPos.forward * 50f, Color.red);
        if (Physics.Raycast(this.attackPos.position, this.attackPos.forward * 50f, out hit))
        {
            if (hit.collider.CompareTag("Shield"))
            {
                lr.SetPosition(1, hit.point);
                Quaternion rot = Quaternion.LookRotation(-hit.normal);
                this.onGetHit();
            }
            else //쉴드 말고 다른거에 부딪힐 때
            {
                lr.SetPosition(1, hit.point);
                Quaternion rot = Quaternion.LookRotation(-hit.normal);
                //방패 진동 멈추기
                this.onStopGetHit();
            }
        }
        onStopGetHit();
    }

}

using Oculus.Interaction.HandGrab;
using System.Collections;
using System.Collections.Generic;
using System.Linq;
using UnityEngine;
using UnityEngine.UI;

public class EnemyAttackMain : MonoBehaviour
{
    [SerializeField]
    private Shield shield;
    [SerializeField]
    private GameObject aerialEnemyPrefab;
    [SerializeField]
    private Transform[] points;
    [SerializeField]
    private Transform playerTrans;
    private GameObject[] enemyGo;
    private int enemyNum=0;
    Dictionary<GameObject, float> mainDic = new Dictionary<GameObject, float>();
    private float detectEnemyRadius=20;


    private void Update()
    {
        this.enemyGo = GameObject.FindGameObjectsWithTag("Enemy");
        this.CreateEnemy();
        foreach (var enemy in enemyGo)
        {
            var laser=enemy.GetComponentInChildren<Laser>();
            laser.onGetHit = () =>
            {
               this.shield.Shake();
            };
            laser.onStopGetHit = () =>
            {
                this.shield.StopShake();
            };
        }

        this.FindShield();
    }

    private void CreateEnemy()
    {
        if (this.enemyGo.Length == 0)
        {
            if (enemyNum < 6)
            {
                //적 3마리 생성
                for (int i = 0; i < 3; i++)
                {
                    Debug.Log("적 생성해라");
                    Instantiate(this.aerialEnemyPrefab, this.points[i].position, Quaternion.identity);
                    enemyNum++;
                }
            }
            else if (enemyNum >= 6 && enemyNum < 8)
            {
                //2마리 생성
                for (int i = 0; i < 2; i++)
                {
                    Instantiate(this.aerialEnemyPrefab, this.points[i].position, Quaternion.identity);
                    enemyNum++;
                }
            }
            else
            {
                //더이상 생성하지 X
                //인디케이터 생성
                return;
            }
        }
    }

    private void FindShield()
    {
        var shieldGo = GameObject.FindWithTag("Shield");
        var dis = Vector3.Distance(this.playerTrans.position, shieldGo.transform.position);
        if (dis > 20f&& OVRInput.Get(OVRInput.Button.PrimaryHandTrigger, OVRInput.Controller.LTouch))
        {
            this.shield.Init();
        }
    }

    public GameObject FindEnemyDir()
    {
        Collider[] enemyCols = Physics.OverlapSphere(this.playerTrans.position, detectEnemyRadius, 1 << 6);
        this.mainDic.Clear();
        for (int i = 0; i < enemyCols.Length; i++)
        {
            var col = enemyCols[i];
            Vector3 mainDir = (col.transform.position - this.playerTrans.position).normalized;
            var dot = Vector3.Dot(this.shield.pos.forward, mainDir);
            //Debug.LogFormat("<color=lime>손의 앞방향과 적의 앞 방향 내적 값 !{0}</color>",dot);
            this.mainDic.Add(col.gameObject,dot );
        }

        if (this.mainDic.Count > 0)
        {
           Debug.Log(mainDic.Count);
            var nearestDir = this.mainDic.Values.Max();//가장 방향이 비슷한 적
            var target = this.mainDic.FirstOrDefault(x => x.Value == nearestDir).Key;
            //Debug.LogFormat("<color=red>가까운 적 이름!{0}</color>", target.name);
            return target;

        }
        else
        {
           Debug.Log("반경안에 적이 없습니다.");
           return null;
        }
    }

    private void OnDrawGizmos()
    {
        Gizmos.color = Color.yellow;
        Gizmos.DrawWireSphere(this.playerTrans.position, 20);
    }
}

using Palmmedia.ReportGenerator.Core.Reporting.Builders;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UIElements;
using static UnityEngine.GraphicsBuffer;

public class AerialEnemy : MonoBehaviour
{
    [SerializeField]
    private SphereCollider childCollider;
    [SerializeField]
    private GameObject laserStaticEffect;
    [SerializeField]
    private Laser laser;
    [SerializeField]
    private GameObject getHitEffect;
    private Coroutine coroutine;
    private Rigidbody rBody;
    private SphereCollider parentCollider;
    private float time=0f;
    private void Start()
    {
        this.rBody = this.gameObject.GetComponent<Rigidbody>();
        this.parentCollider = this.gameObject.GetComponent<SphereCollider>();
        this.rBody.useGravity = false;
        this.Move();
    }

    private void OnCollisionEnter(Collision collision)
    {
        if (collision.gameObject.CompareTag("Shield"))
        {
            Destroy(this.gameObject, 2f);
            this.rBody.useGravity = true; //바닥으로 떨어지게
            this.parentCollider.enabled = false;
            this.childCollider.enabled = true;

            var contact = collision.GetContact(0);
            this.rBody.AddForce(contact.point * 25f);
            this.getHitEffect.SetActive(true);

            this.laserStaticEffect.SetActive(false);
            this.laser.enabled = false;
            this.StopCoroutine(this.coroutine);
        }
    }

    //생성되고 랜덤 위치로 이동
    private void Move()
    {
        if (this.coroutine != null) StopCoroutine(this.coroutine);
        this.coroutine = this.StartCoroutine(this.CoMove());
    }

    private IEnumerator CoMove()
    {
        var position = this.transform.position+ new Vector3(Random.Range(-0.6f, 0.6f), Random.Range(-0.5f, 1.0f), Random.Range(-8f, -4f));
        this.laserStaticEffect.SetActive(false);
        this.laser.enabled = false;
        while (true)
        {
            this.transform.LookAt(position);
            this.transform.Translate(Vector3.forward * Random.Range(1f,15f) * Time.deltaTime);
            var dis = Vector3.Distance(position, this.transform.position);
            if (dis < 0.2f)
            {
                this.coroutine=this.StartCoroutine(this.CoAttackAndMove());
                break;
            }

            yield return null;
        }
    }

    //공격-> 랜덤이동-> 공격-> 랜덤이동 ..
    private IEnumerator CoAttackAndMove()
    {
        var position = this.transform.position + new Vector3(Random.Range(-0.8f, 1.2f), Random.Range(-1f, 0.8f), Random.Range(-1f, 1.2f));
        Debug.Log(position);
        while (true)
        {
            this.time += Time.deltaTime;
            if (Vector3.Distance(position, this.transform.position)<0.2f)
            {
                //Debug.Log("목표 위치 변경 ");
                if (this.time > 0.5f)
                {
                    this.laserStaticEffect.SetActive(true);
                    this.laser.enabled = true;
                    this.time = 0;
                }
                yield return new WaitForSeconds(0.7f);
                position = this.transform.position + new Vector3(Random.Range(-0.7f, 0.7f), Random.Range(-0.7f, 0.8f), Random.Range(-0.6f, 1f));
            }
            else
            {
                this.transform.position = Vector3.MoveTowards(this.transform.position, position, 0.05f);
                this.laserStaticEffect.SetActive(false);
                this.laser.enabled = false;
            }

            yield return null;
        }
    }
}
